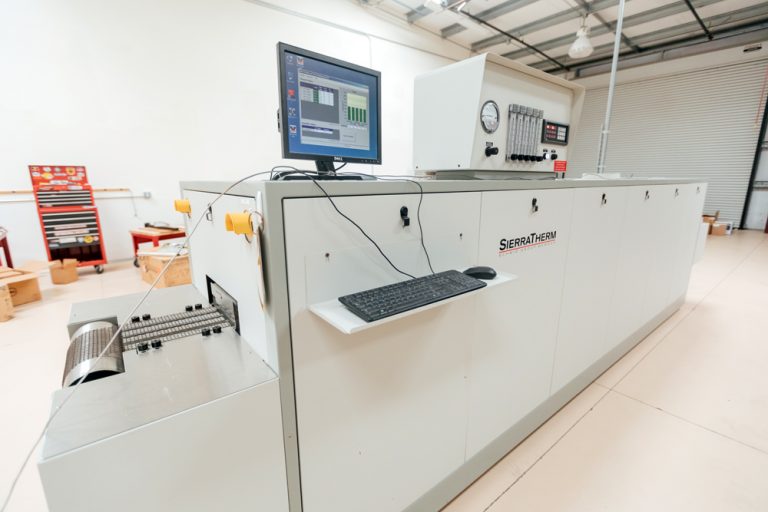

SierraTherm 7K9-70C96-5LIR Solar Cell Processing Furnace

SierraTherm 7K9-70C96-5LIR Solar Cell Processing Furnace A. Belt Width: 9.5 241 B. Heated Length: 70 1778 C. Cooling Length: 96 2438 D. Product Clearance Above Belt: 1.0 25 E. Dimensions: Entry Table: Exit Table: Overall Length: Height: Width: Conveyor Height: Leveling Range: 18 18 220(18.3ft) 55 43 36 ± 1 457 457 5588 1397 1092 914 25 F. Belt Speed Range Minimum Maximum 12/min 200/min 305/min 5080/min G. Number of Heated Zones 5 H. Atmosphere: Air I. Input Power: 220 VAC or 380 VAC available 3 Phase, 50 Hz 63.3 KVA Max 18 KVA Nominal J. Approximate Weight 3,000 lbs … Continue reading SierraTherm 7K9-70C96-5LIR Solar Cell Processing Furnace
