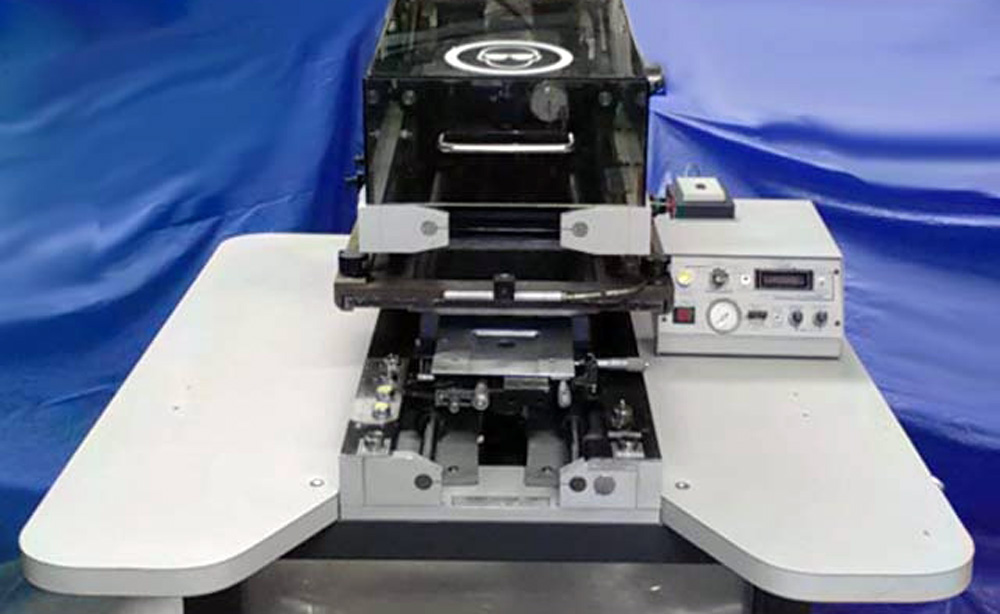

MPM TF-100 SCREEN PRINTER

MPM TF-100 SCREEN PRINTER

mpm-tf100-01 screen printer mpm-tf100-01 screen printer  mpm-tf100-01 screen printer
mpm-tf100-01 screen printer mpm-tf100-01 screen printer  mpm-tf100-01 screen printer mpm-tf100-01 screen printer


MPM TF-100

Print Area:  6″ x 6″
Frame Size: 5″ x 5″ up to 12″ x 12″ ID
Substrate Carriage:Registration Repeatability: ±0.0005″
Substrate Size: 6″ x 6″
X-Y Adjustment: ±0.500″ range (micrometer)
Rotary Adjustment: ±10″ (micrometer)
Squeegee Head:Print Stroke Adjustment: 1″ to 9″

Speed: 0 to 15″ per second
Screen Height Adjustment:
1″ range (dial indicator)
Pressure: 2-30lbs by calibrated coil springs
Angle of Attack Adjustment: ±5″
Squeegee Holder: 7.5″ maximum (specify)
with .0375″ square blade

Service:Power: 115V, 60Hz (220V, 50Hz)
1 amp, Air: 80 – 125 psig @ 6cfm
Vacuum: 23 Hg @ 4cfm

Dimensions:
Printer Length: 42″
Width: 16″
Height: 17″ Formica Covered Table
Length: 48″
Width: 37″
Steel Stand
Height: 28″
Shipping Weight
300lbs




Questions?  Use the FORM, please?
Yes we have them in stock!
