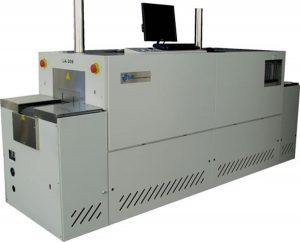

LA-309 Furnace



LA-309 Furnace-IR BELT FURNACE

LA-309 Furnace-IR BELT FURNACE
LA-309 Furnace-IR Belt Furnace

ParameterLA-309LA-309X
Load Station38 cm
15 inches
38 cm
15 inches
Entrance Isolation Baffle
with Venturi Exhaust
38 cm
15 inches
38 cm
15 inches
IR Heating Chamber, Zone 119 cm
7.5 inches
19 cm
7.5 inches
IR Heating Chamber Zone 238 cm
15 inches
19 cm
7.5 inches
IR Heating Chamber Zone 319 cm
7.5 inches
19 cm
7.5 inches
IR Heating Chamber Zone 4none19 cm
7.5 inches
Transition Tunnel
with Venturi Exhaust
38 cm
15 inches
38 cm
15 inches
CACT Closed Atmosphere
Cooling Chamber
76 cm
30 inches
76 cm
30 inches
Unload Station38 cm
15 inches
38 cm
15 inches

SPECIFICATIONS

ParameterLA-309LA-309X
Process GasCDA, Nitrogen (N2)
Forming Gas with premixed Hydrogen
and
Nitrogen
Control Zones3 zones4 zones
Heating Chamber length76 cm (30 inches)76 cm (30 inches)
Cooling ChamberCACT – CDA or N2
convective and radiant cooling
exterior fan heat removal
Belt Speed25-500 mm/min
(1-20 ipm)
or
50-1000 mm/min
(2-40) ipm
(other speeds available)
Conveyor BeltBNV- low mass,
stabilized
Nichrome-V
Belt Size, nominal width23 cm
9 in.
23 cm
9 in.
ExhaustImproved venturi exhaust stacks
to reduce process gas consumption.
Number of stacks will vary with
process requirements.
Temperature Capacity, max1000 degrees *C*
ElectricalAll models include
universal transformers
which accommodate 208-480 Vac
and
50/60 Hz frequency
anywhere in the world,
allowing furnace relocation
without external equipment. We are CE Certified!
All furnace systems
are phase balanced
to improve facility efficiency.
IR lamp controls
automatically keep
IR spectrum constant.

Made In USA

Facility Requirements

ParameterLA-309
&
LA-309X
MaximumTypical Operating
@
850 *C*
Power208 Vac
3 ph
60 Hz
25.7 kW
71 A
13.1 kW
36.4 A
220-240 Vac
3 ph
50/60 Hz
27.3 kW
71.6 A
13.9 kW
36.5 A
380 Vac
3 ph
50/60 Hz
27.3 kW
71.6 A
10.0 kW
15.2 A
400-415 Vac
3 ph
50/60 Hz
22.3 kW
31.0 A
11.4 kW
15.9 A
440-500 Vac
3 ph
50/60 Hz
26.2 kW
30.3 A
13.4 kW
15.4 A
ParameterProcess SectionTypical
425 degrees *C*
operation
(CDA exchange rate: 2x, balanced flow)
Low O2 operation,
850 degrees *C*
(N2/FG exch rate:3x, 50 sLpm excess flow)
Process Gas SupplyGas 1357 Lpm
@
5 bar
96 sLpm
@
5 bar
756 scfh
@
70 psig
203 scfh
@
70 psig
Gas 2
Heating
Chamber
only
n/a69 sLpm
@
5 bar
146 scfh
@
70 psig
Process Gas ExhaustGas 1
+
Gas 2
357 sLpm
756 scf
115 sLpm
243 scfh
Enclosure VentilationFurnace Cabinet Fans:
vent to room
or
exhaust system
1860 m3/hr
@
30 degrees *C*
1100 cfm
@
86 degrees *F*
DimensionsLength307 m
121 inches
Width0.76 m
30 inches
Height1.56 m
61.5 inches
Adjustable Conveyor Height91.44 cm +/- 3.8
36 inch +/- 1.5
91.44 cm
36 inch
Weight730 kg
1600 lbs

KARENMADISON.COM
619.985.9390
madison@karenmadison.com

All standard models (except LA-306 series and “P” models) include a RAID1 computer with LCD  screen, full size keyboard interface
and both Ethernet and wireless-N high-speed network connections to facilitate view
and control of the furnace by managers and process engineers from any location.
Four (4) local USB ports are provided, convenient for connecting a furnace profiler and jump drive storage devices.

The new “P” series replaces the computer control system with high quality discrete digital controllers
for cost-effective precision control on repetitive production applications.
These furnaces are a good solution in applications where process recipes are changed infrequently and auxiliaries are at a minimum.
