CI Hayes High Temperature Pusher Furnace

 C I Hayes
MY-040890-90PHM
High Temp Pusher Furnace

  • 4” Height over Hearth
  • Trays 8” wide, recommended tray size 8” x 8” x ~1”
  • Electrically heated 90” long preheat rated for 1100C.
  • 42kW
  • 3 zones of control with Nichrome Elements
  • Metallic Muffle in preheat.
  • 90” of Heat
  • 1500C
  • 6 zones of control with “MOLY” heating elements
  • 117kW, 460/3/60
  • 198” cooling zone with 5 zone controls
  • Automated doors at each end of furnace with Nitrogen Atmosphere
  • Dissociated ammonia/nitrogen blending atmosphere with Nitrogen purge.
  • Multiple inlets for even atmosphere
  • Overtemp protection control for both preheat and high heat
  • A-B SLC-500 logic control
  • Screw drive, dual speed, anti jam protection
  • Articulated return conveyor
  • Hearth level 44”
  • Overall; 125” wide x 545” long x 72” high
    (without burn off stacks).

Complete – Good Condition!!!

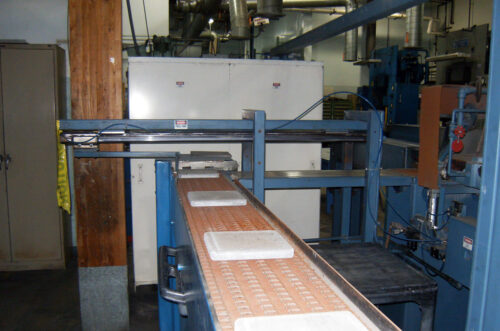

01-CI HAYES MY-040890-90PHM High Temp Pusher Furnace
