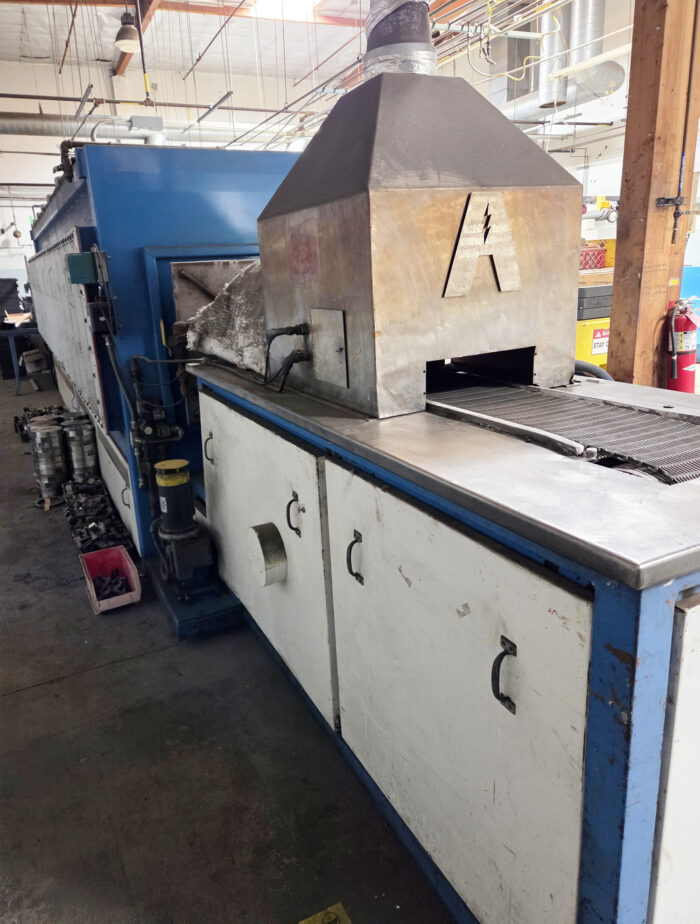

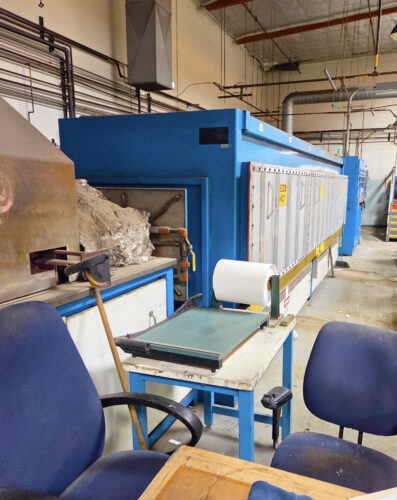

 Abbott Continuous Belt Furnace

Model:  6ZSCR-12-240-HH6-2150

4” Opening over the belt

12” Belt

240” Heating Chamber

220” Cooling

296” Loading and unloading tables

Vent stacks
Atmosphere curtain tunnels…etc

OAL:  63’ +- “

227 KW
480/3/60

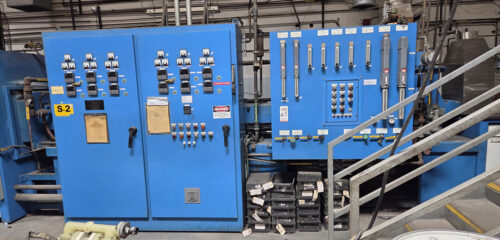

6 Zone Honeywell Controls with overtemp protection

Max. temp: 2150 F

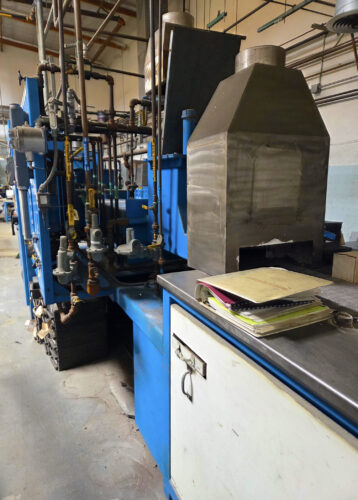

Atmosphere Piping:
Dissociated Ammonia/nitrogen
Nitrogen purge safety system

---

---

---

---
